Fire Extinguisher Seat Rail Mount (can fit Element Fire extinguishers)

Features and Benefits

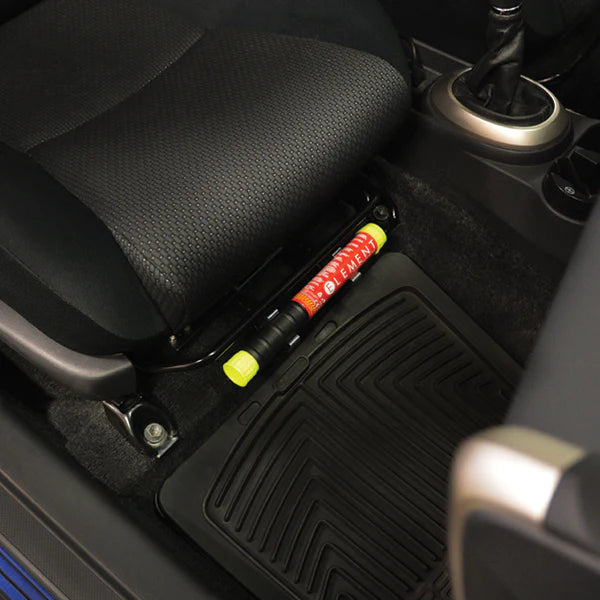

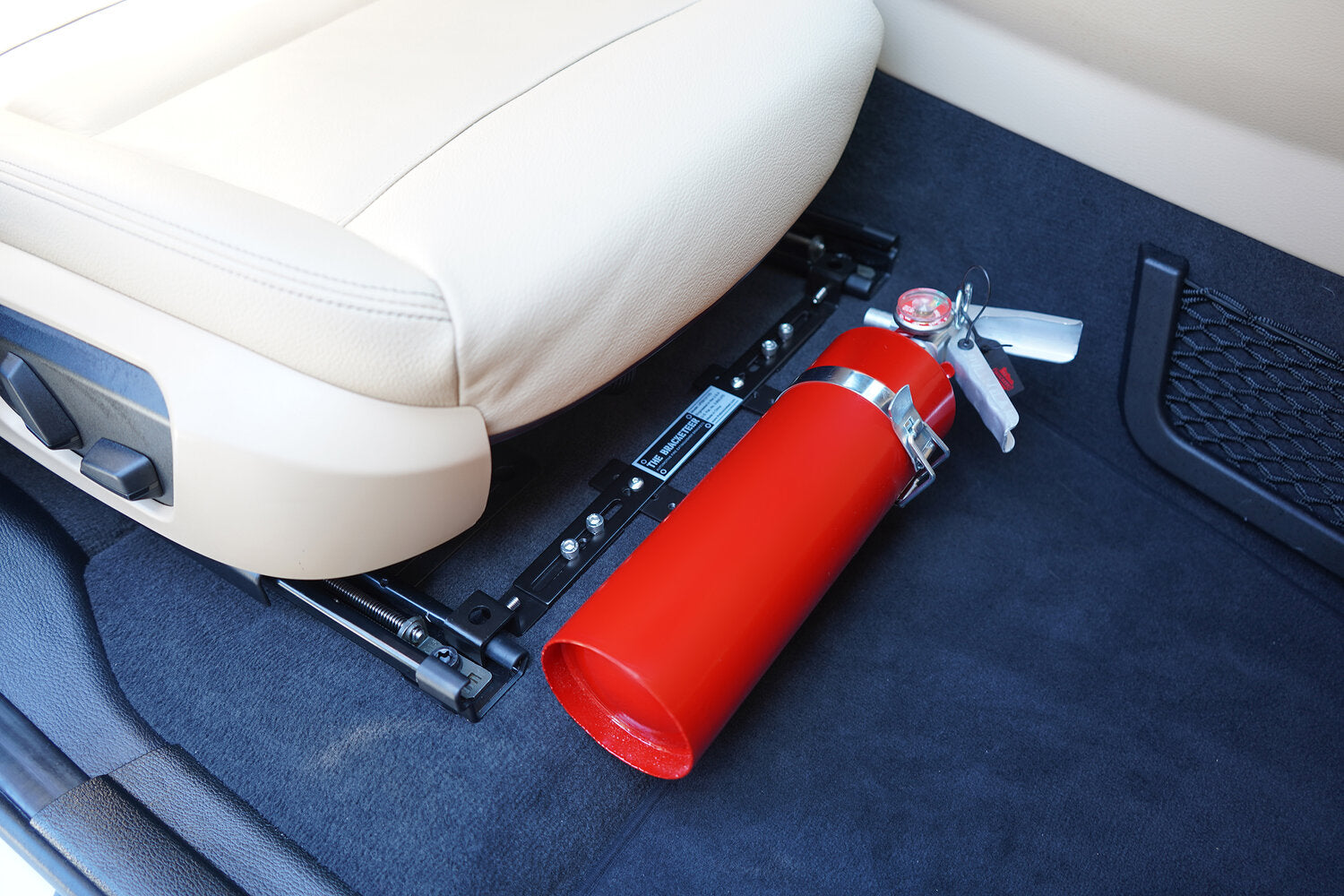

• Mounts to the front or rear of the passenger seat

• Places extinguisher out of the way, but within easy reach

• Simple clamp-on design for contemporary seat rails or bolt-on design for traditional seat mount points

• Simple installation in under 10 minutes without drilling any holes

• Adjustable width to suit a variety of vehicles

• Over 30 different mounting points for extinguisher to ensure perfect location is always achieved

• Durable electrophoretic coating

• Supplied with stainless steel bolts & hex keys

• Compatible with seat rails spacing between 11-3/4” to 18-7/16” (298mm to 468mm) inside edge to inside edge

• Engineered in the U.S.A.

• One year limited warranty

Specifications:

Material                                  A572 Grade 50 steel with electrophoretic coating (e-paint)

Shipping Weight                   20oz. (567g)

Installed Weight                    17oz. (482g) (excluding extinguisher and cradle)

Shipping Dimensions            12-5/8” x 2-1/4”x 2-1/4” (321mm x 57mm x 57mm)

Cradle Hole Spacing              4-¼”, 4-⅝” or 5” (108mm, 117mm or 127mm)center to center

Seat Rail Spacing                  11-3/4” to 18-7/16” (298mm to 468mm) inside edge to inside edge

Bolt Mount Spacing              12” to 17-1/2” (305mm to 445mm) center to center

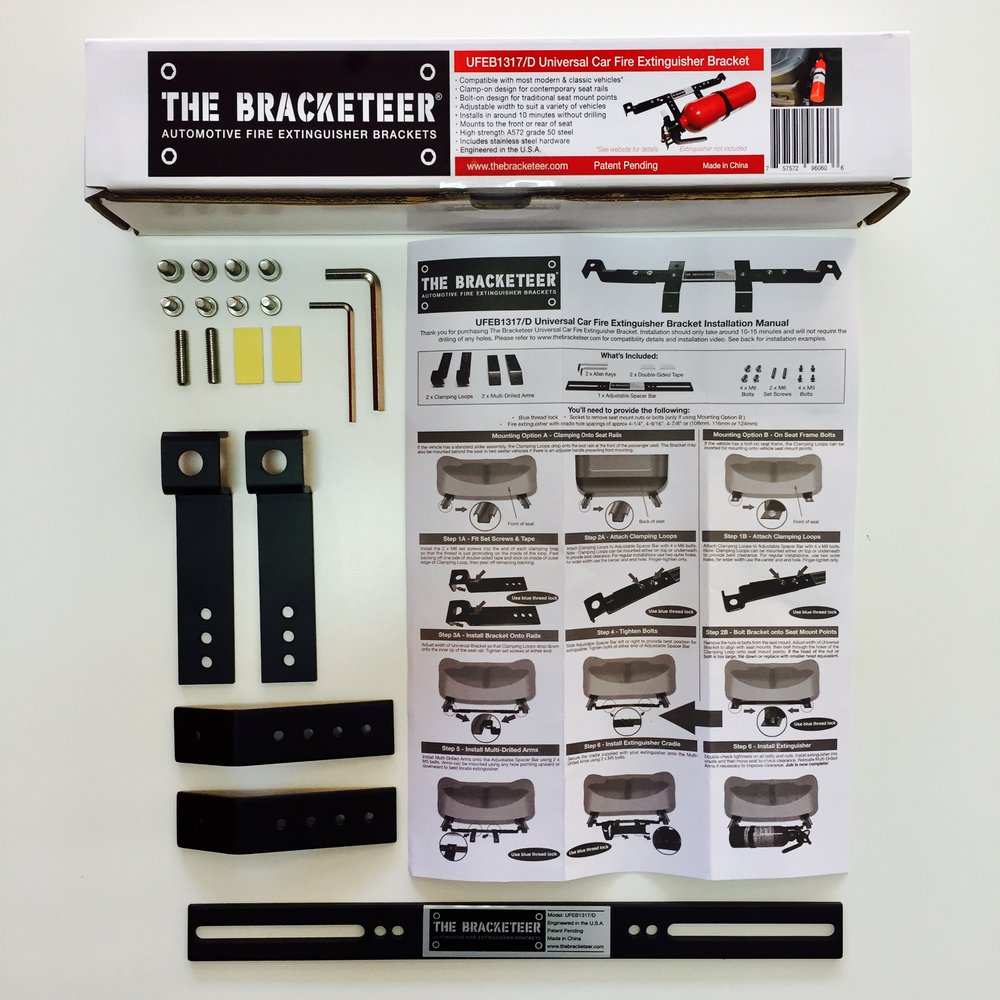

Included:

1 x Adjustable Spacer Bar

2 x Clamping Loops

2 x Multi Drilled Arms

2 x Stainless Steel M6 Grub Screws

4 x Stainless Steel M6 Allen Head Bolts

4 x Stainless Steel M4 Allen Head Bolts

2 x Hex keys (Allen keys)

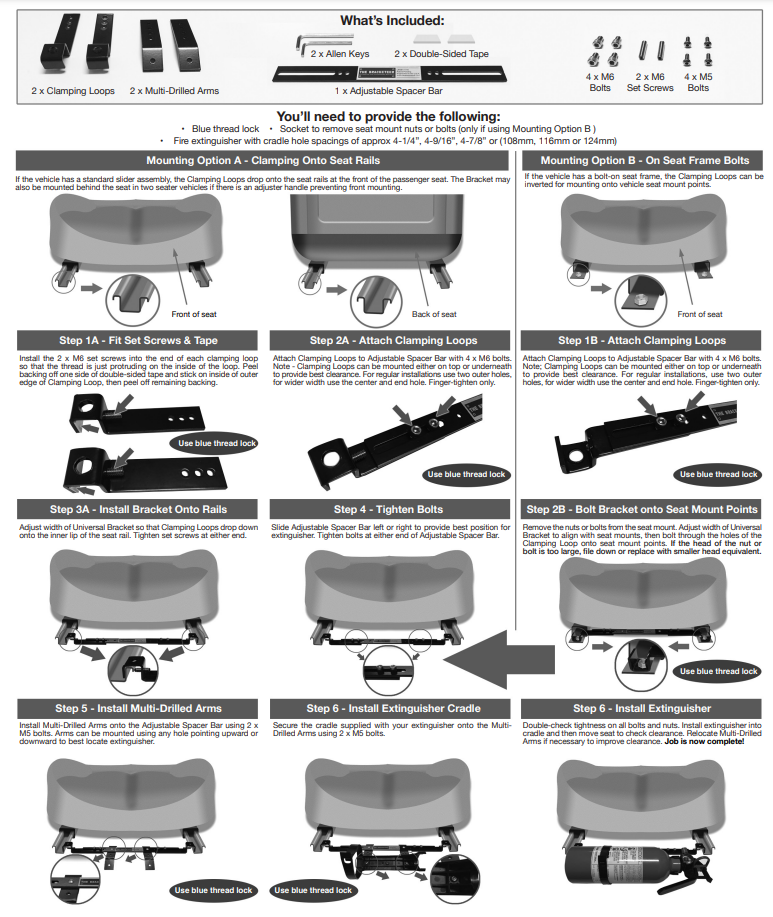

1 x Installation Manual
