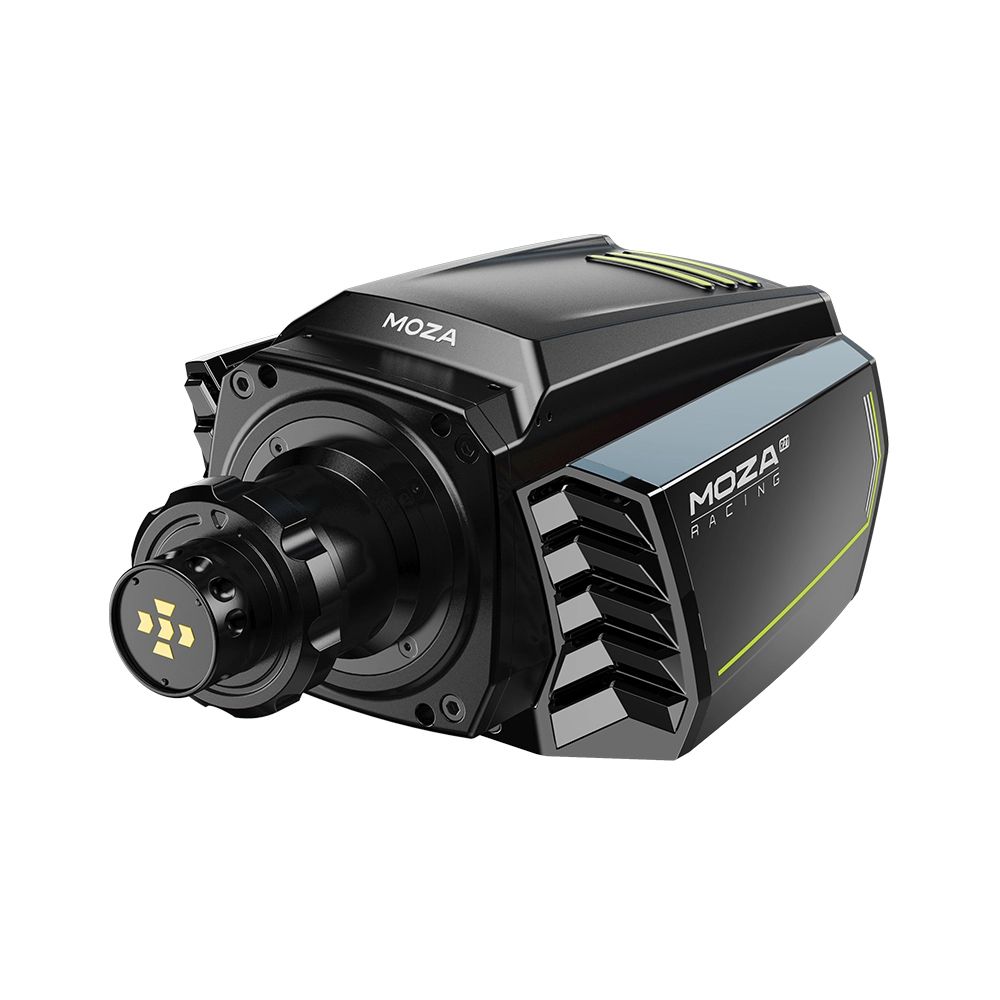

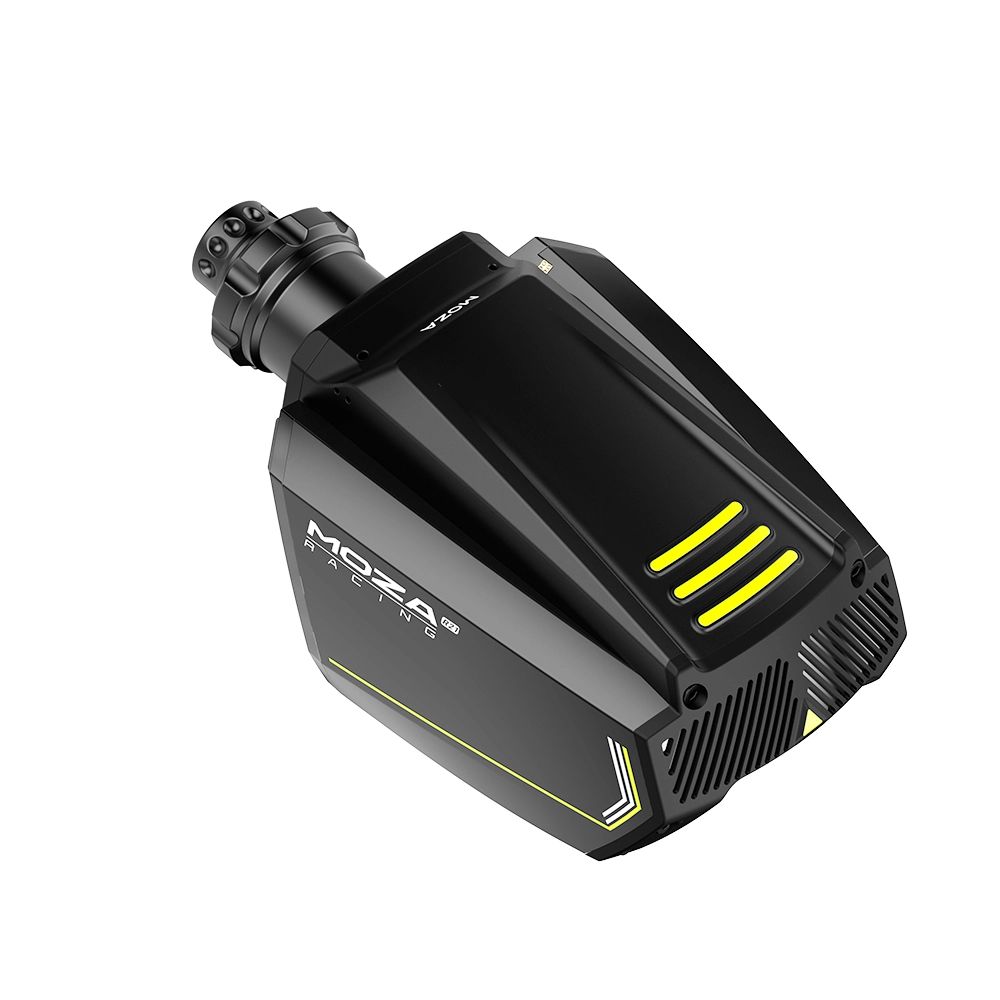

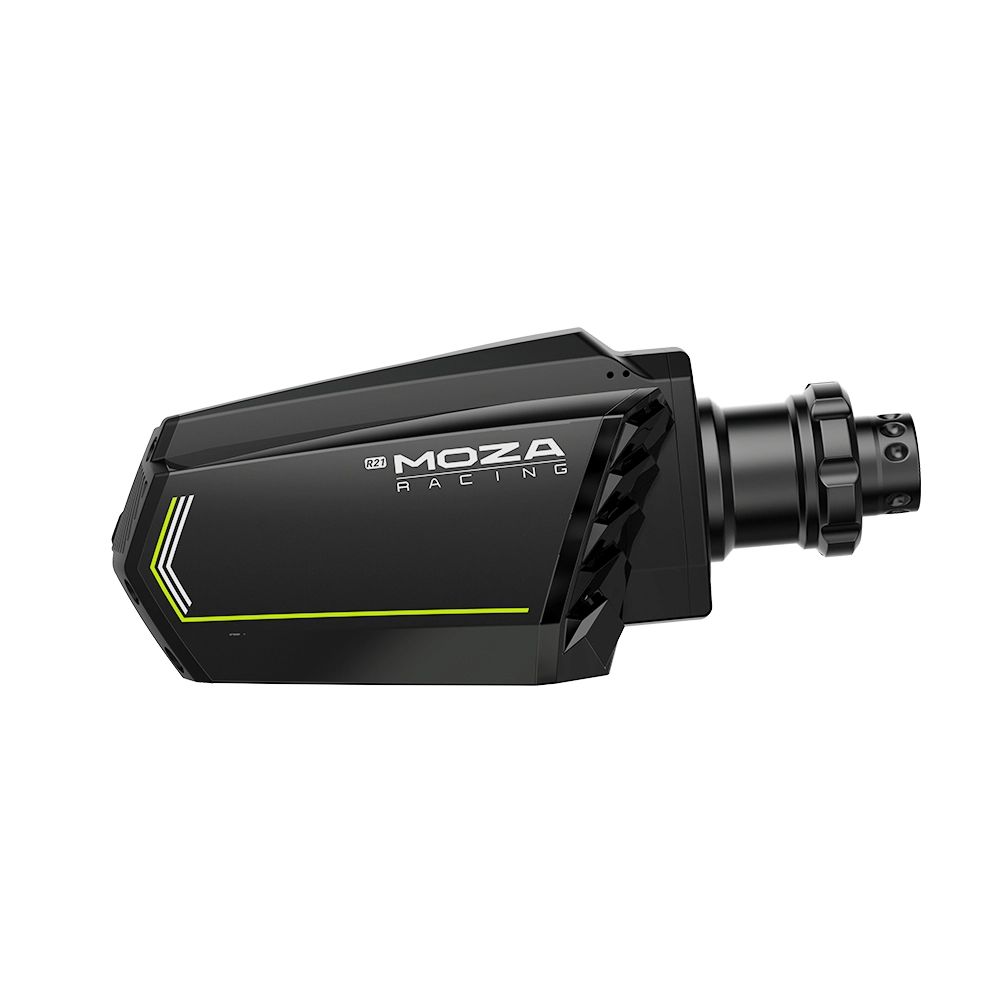

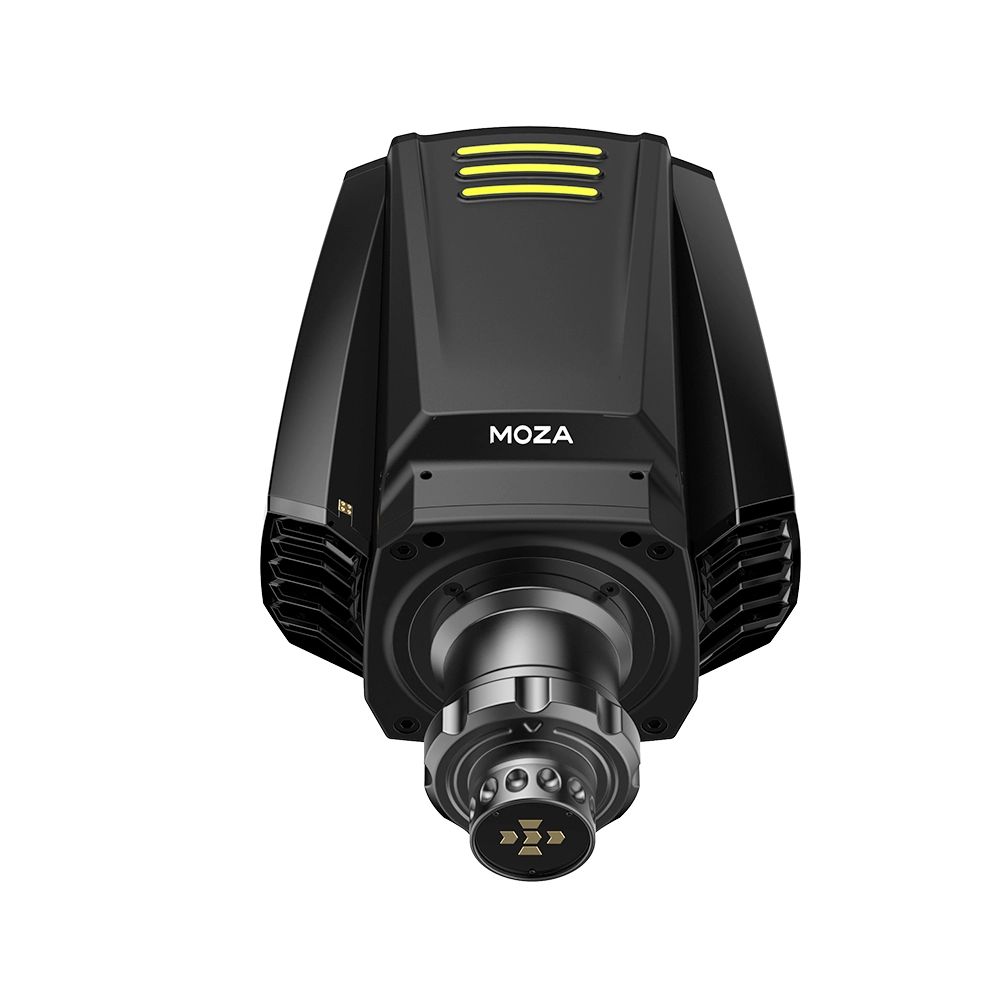

MOZA R21 WHEEL BASE
Discover the pinnacle of our sim racing wheelbases collection, the MOZA R21. With a remarkable peak torque of 21 Nm, it sports a 30% larger torque output than other similar models, it delivers unparalleled force feedback for a truly immersive racing experience. Its all-aluminum alloy body combines strength and elegance with its unique supercar-inspired design. The R21 motor utilizes 6 unique design approaches to ensure a smooth racing experience. The rotor of the R21 is a triple staggered slanted pole design commonly found in electric motor vehicles and ensures a balanced vibration-free motor. Featuring 262,144 points of resolution, every movement is captured with exceptional precision. With hands-off protection and ultra-low static torque, you can focus on the race without distractions. Take control with the MOZA Pit House App Control, allowing you to fine-tune settings with ease. Its one-click launching system puts you on the fast lane to victory.
SPECS:
| Platform PC |
| Drive Type Direct Drive |
| Max Wheel Rotation Limitless |
| Housing Material Aviation Grade Aluminum Alloy |
| Housing Color Black |
| Peak Torque 21 Nm |
| Peak Power 480W |
| Input voltage 110V-220V AC ->36V DC |
| Encoder Resolution 262144ppr (18-bits) |
| USB Refresh Rate 1000Hz |
| Indicator YES |
| Quick Release Supported |
| Connection Ports Power, DC Input, E-stop, USB (Pogo pins for RM dash ) |
| Accessories User manual, Warranty card, Power supply, USB cable, Toolkit |
| Mounting Method Bottom mount |
| Side Mount Option With an optional side/front mount bracket |
| Table Clamp Optional |
| Side Mounting YES |
| Emergency Stop Optional |
| App Functions Supported |
| Indicator YES |
| Item Dimension (L"xW"xH") 21 x 14 x 8 Weight 28.66 lbs Warranty Information Main Body: 24 Months Power Supply: 24 Months Cable: 6 Months Accessories: Not Applicable |
